Kabolite 350: Unleash the Beast! 2025 RC Excavator - Digging Dreams into Reality!
Alright, listen up, folks! Forget everything you think you know about… well, about *this* thing. Because this ain't just some *thing*. This is a portal to a better you, a happier you, a you that knows how to rock. This… is the key. The secret weapon. The thing you didn't even know you needed until right now. Trust us, you'll be tellin' all your friends about this one. Get ready to experience a whole lotta awesome. Seriously, what are you waiting for? Click that button and let the good times roll!

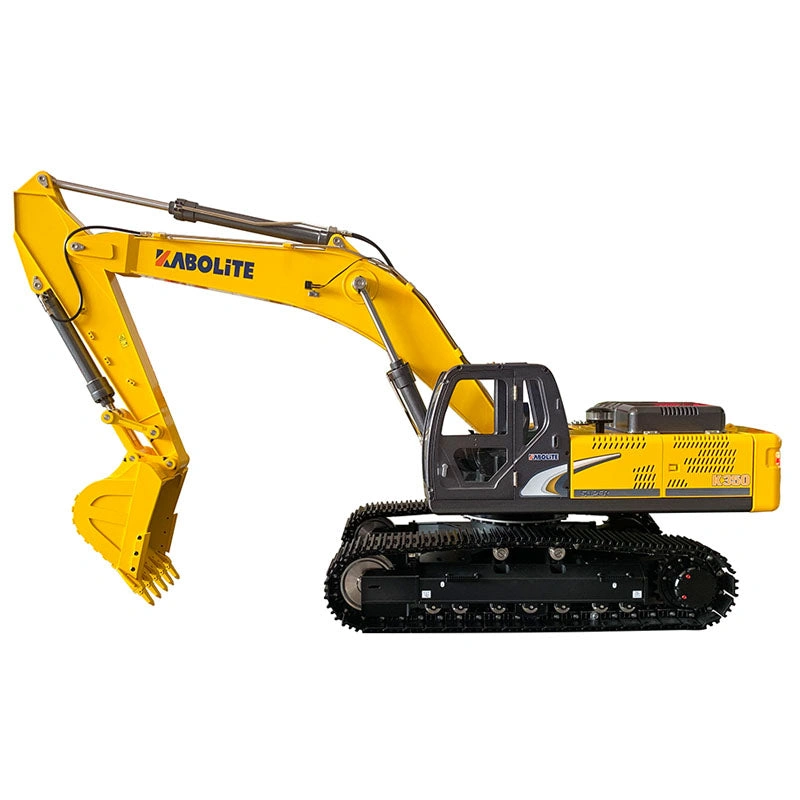

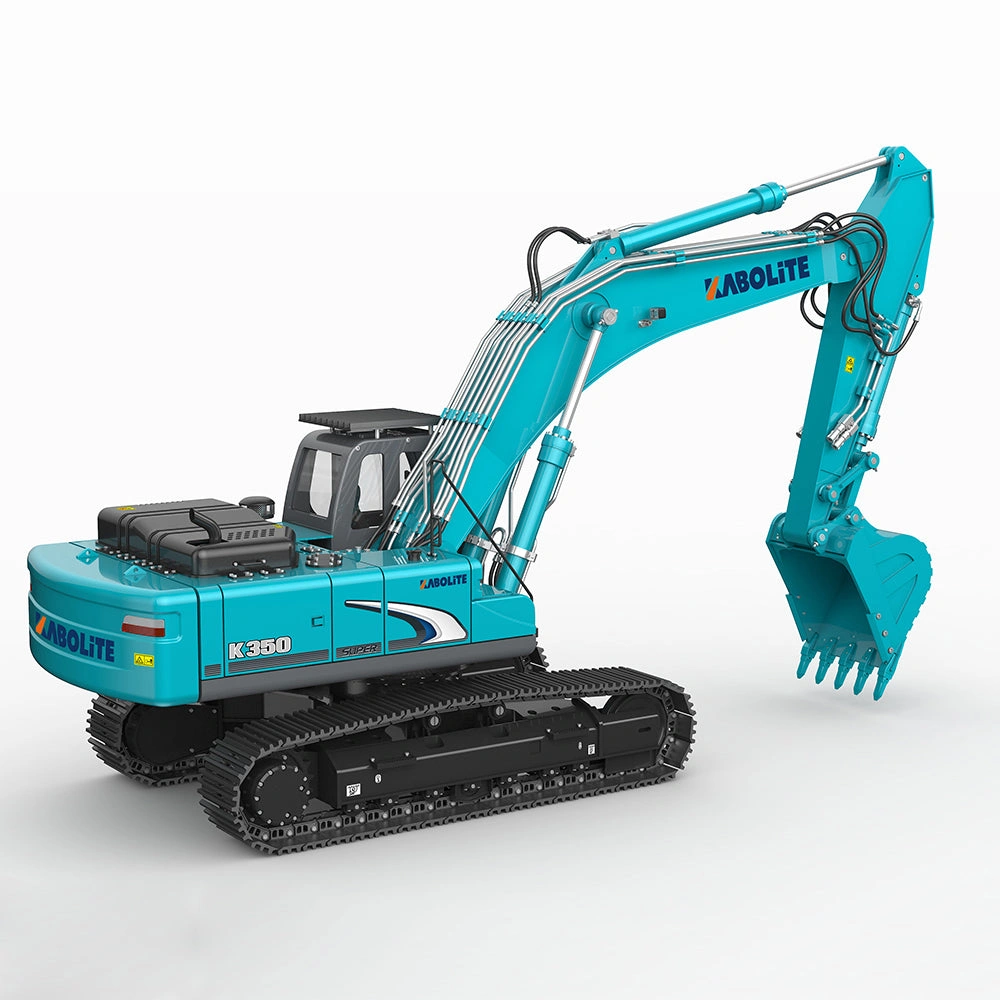

This is the original Kabolite 350 Hydraulic RC Excavator Model. This is shipped directly from huina factory in China to AU/CA/EU/US/Dubai, door to door. We ship with couriers such as UPS/DHL/FedEx. It usually takes 7-15 days to deliver to customers.
ALL UK CUSTOMERS SHOULD CONTACT [email protected] BEFORE ATTEMPTING TO PURCHASE
Detailed Description of the K350-Excavator
Operating Weight 18KG | Pump Speed 2000-8400 rpm | Max Digging Depth 485mm | Bucket Capacity 0.00046864 cu yd | Bucket Breakout Force 20-35KG |
Packing Dimension:90*33*40cm
NET WEIGHT： 18KG
Gross Weight: 26.50KG
The track motors are brushless motors with a 4 stage planetary gear reduction drive
Track Drive
Swing motor

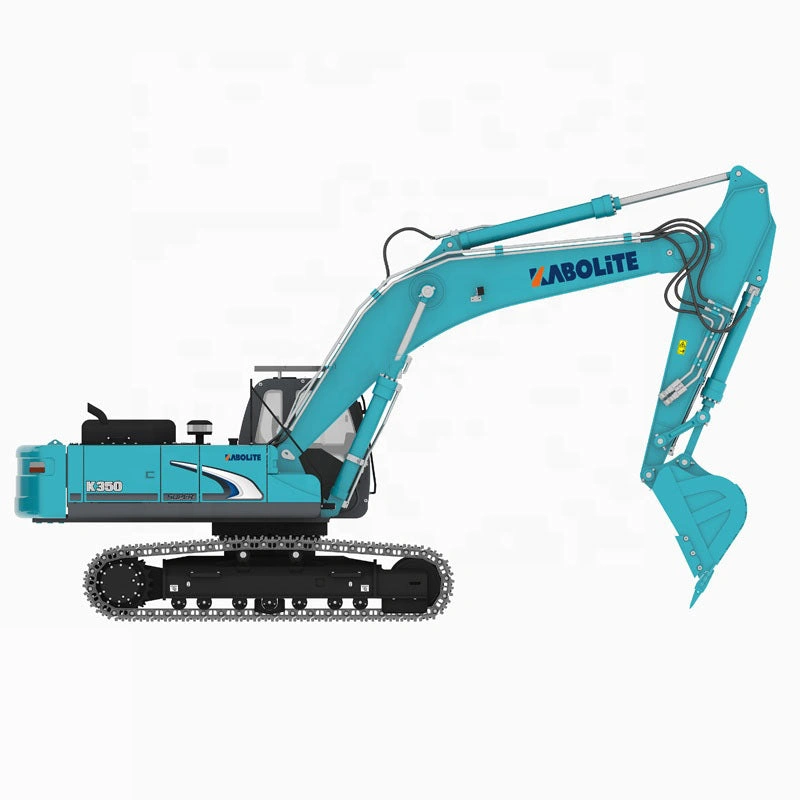

K350-100 Dimensions:
Dimensions:K350-100 A. Overall length | Unit:mm 815.4 |
|
B. Overall width | 233.9 | |
C. Overall height (to top of boom) | 274.2 | |
D. Basic machine length | 440.7 | |
E. Overall height (to top of cab)* | 241.5 | |
F. Ground clearance of rear end* | 102.0 | |
G. Center distance of tumblers | 298.0 | |
H. Overall length of crawler | 376.1 | |
I. Crawler height at tumbler center* | 83.9 | |
J. Track gauge | 184.0 | |
K. Width of crawler shoe | 49.9 | |
L. Ground clearance of undercarriage* | 40.5 |
*Excludes height of grouser bar.
K350-100 Backhoe bucket:
Remote control channel configuration:
KABOLITE-K350
（Transmitter configuration guide）
Channel # | Configuration neme | lnput | Control | Position |
CH1 | Bucket |
| Gimbal | Center |
CH2 | Main Boom |
| Gimbal | Center |
CH3 | Stick |
| Gimbal | Center |
CH4 | Swing Motor |
| Gimbal | Center |
CH5 | Left Track | VRA | Knob | Center |
CH6 | Right Track | VRB | Knob | Center |
CH7 | Pump | SWA | Switch | Up |
CH8 | Light Module | SWD | Switch | Up |
CH9 | Sound Module | SWB | Switch | Up |
CH10 | Sound Module Mixer |
|
| 6 |
The packaging is made of Aluminium Box+Paper Carton Box
